Hakobe ・ Carry

Transporting pianos is safe and easy with this 3D trolley from Genepis.

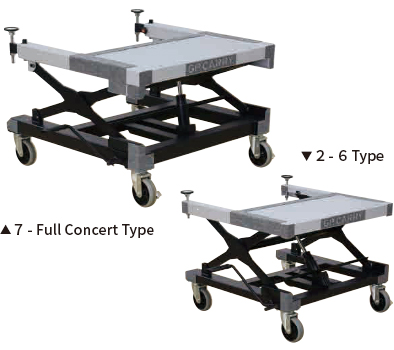

GP Carry

GP Carry is a trolley capable of smooth transportation over flat surfaces, such as on stage or within a floor.

It places no burden on the piano legs and casters, and as the wheels are based on urethane rubber, so it does not leave noticeable tracks on the floor.
Improving frame strength and changing the structure of the base improved the product by reducing swaying to the front-and back by half of what it used to be.

Size chart for each type

Width Length Max. Height Min. Height Weight
7 - Full Concert Type 1,010mm 1,010mm 750mm 600mm Approx. 110kg
2 - 6 Type 890mm 890mm 820mm 600mm Approx. 90kg
1 - Type 890mm 810mm 820mm 600mm Approx. 85kg

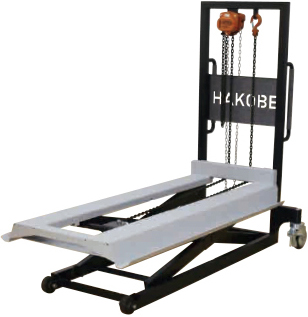

Hakobe

Raising and lowering on the stage is the most difficult task and this is a tool that can do it with a small number of people.

Merging GP enables a small number of people to safely raise and lower pianos, which used to be the most difficult and dangerous operation.
We improved the product by reducing lateral swaying by up to 10% using a cart that doubles the guide rollers and chains. The raised portion is 1,100mm wide, and approximately 2.5m2 is all the space you need for storage.

Instructional Video

Please watch this video to learn how to use the GP Carry and Hakobe products.

Size chart for each type

Width Length Max. Height Min. Height Weight
7 - Full Concert Type 1,220mm 2,000mm 1,650mm 0~1,100mm Approx. 200kg
1 - 6 Type 1,100mm 2,000mm 1,650mm 0~1,100mm Approx. 170kg

*We recommend regular inspections once a year.
*Please purchase at your closest musical instrument store.
