Hakobe ・ Carry

Transporting pianos is safe and easy with this 3D trolley from Genepis.

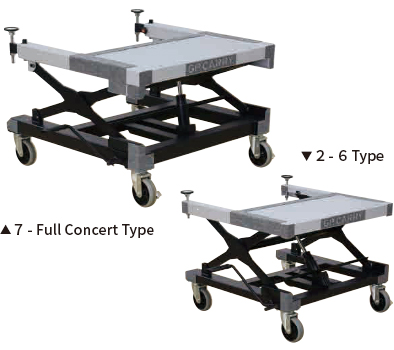

GP Carry II

GP Carry II is a trolley capable of smooth transportation over flat surfaces, such as on stage or within a floor.

It places no burden on the piano legs and casters, and as the wheels are based on urethane rubber, so it does not leave noticeable tracks on the floor.
Improving frame strength and changing the structure of the base improved the product by reducing swaying to the front-and back by half of what it used to be.

Size chart for each type

WidthLength Max. HeightMin. HeightWeight
Standard Type890mm890mm820mm600mm78kg
I - Type890mm810mm820mm600mmApprox. 70kg

Black Carry

This adds a carrying method that befits pianos to the highly rated GPC.

This trolley adds the concept of a carrying method that befits pianos from the idea of "just pick it up and go."
The rear pad in particular was positioned in what piano manufactures would consider the ideal spot to bear a load.
This transportation trolley meets the standards of designers at piano manufacturing companies, as well those of technicians and on-site working staff.

Size chart for each type

WidthLength Max. HeightMin. HeightWeight
Full Concert Type890mm1,010mm780mm630mmApprox. 110kg
Standard Type890mm890mm800mm580mm85kg
I - Type890mm810mm800mm580mmApprox. 77kg

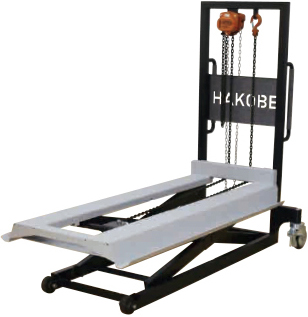

Hakobe II

Raising and lowering on the stage is the most difficult task and this is a tool that can do it with a small number of people.

Merging GP and BK Carry enables a small number of people to safely raise and lower pianos, which used to be the most difficult and dangerous operation.
We improved the product by reducing lateral swaying by up to 10% using a cart that doubles the guide rollers and chains. The raised portion is 1,100mm wide, and approximately 2.5m2 is all the space you need for storage.

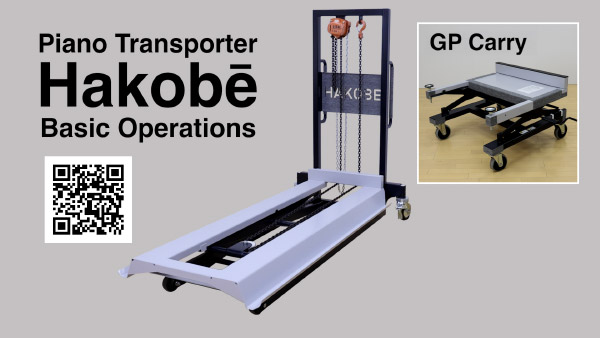

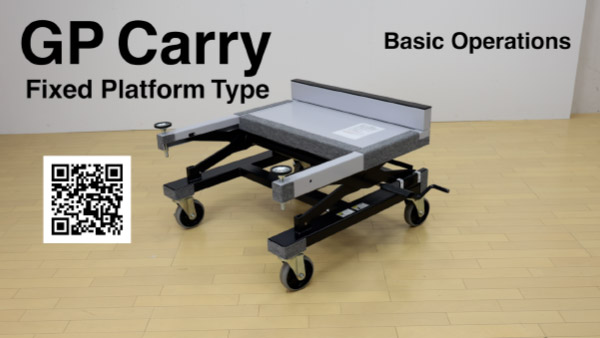

Instructional Video

Please watch this video to learn how to use the GP Carry and Hakobe products.

Size chart for each type

WidthLength Max. HeightMin. HeightWeight
Full Concert Type1,220mm2,000mm1,600mm0~1,100mmApprox. 200kg
Standard Type1,100mm2,000mm1,600mm0~1,100mmApprox. 170kg
I - Type1,100mm2,000mm1,600mm0~1,100mmApprox. 170kg

*We recommend regular inspections once a year.
*Please purchase at your closest musical instrument store.
